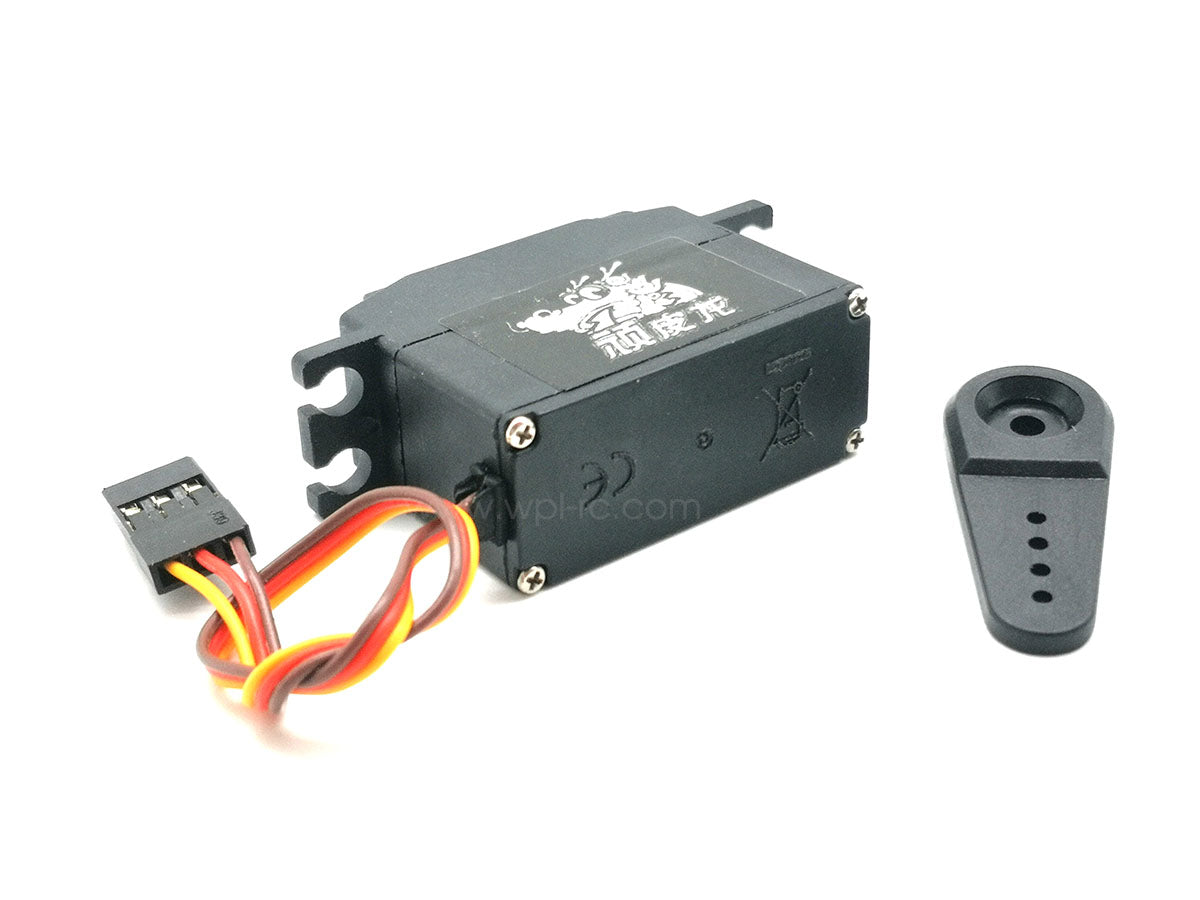

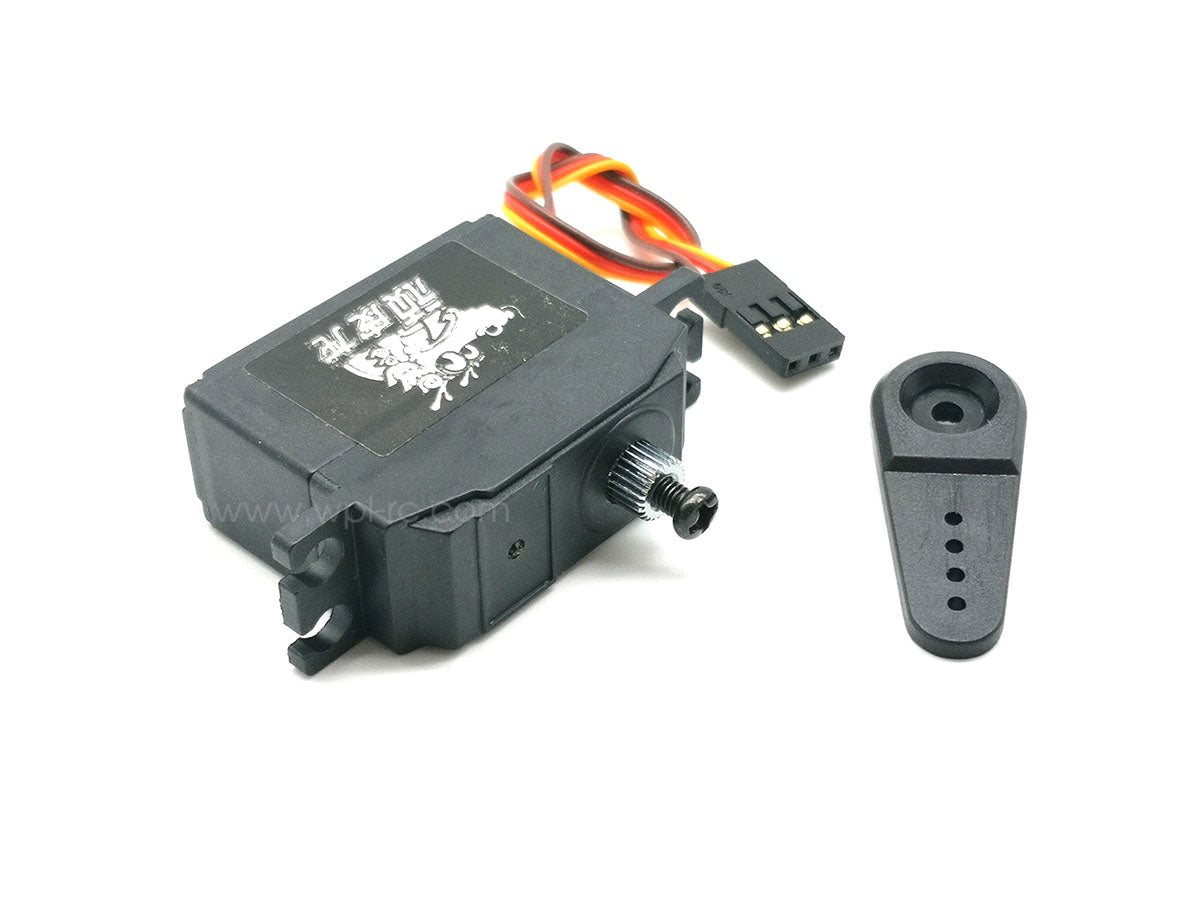

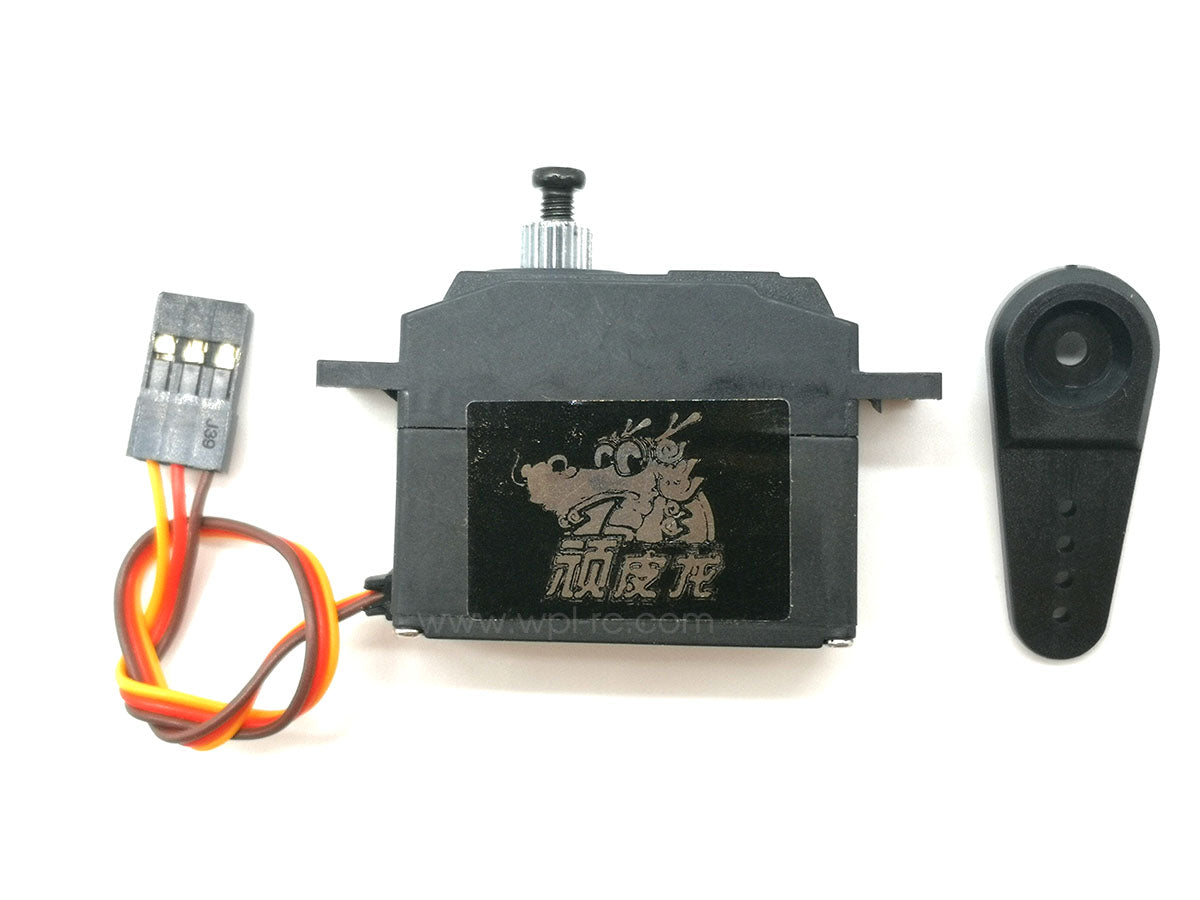

25gram Servo
Signal : Digital
Gears : Metal
Compatible for C34 and C44. For Steering.
*** Pls ensure the aftermarket ESC you use has more than 1A current supply from the 5V BEC otherwise this 25g high torque servo may not function normally. Or just use RES-V3 for peace of mind
Specification,
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)
Stall Torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 35.5X15X30mm
Weight: 25.65 g (0.90oz)
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)
Stall Torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 35.5X15X30mm
Weight: 25.65 g (0.90oz)
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Output shaft : 25T
