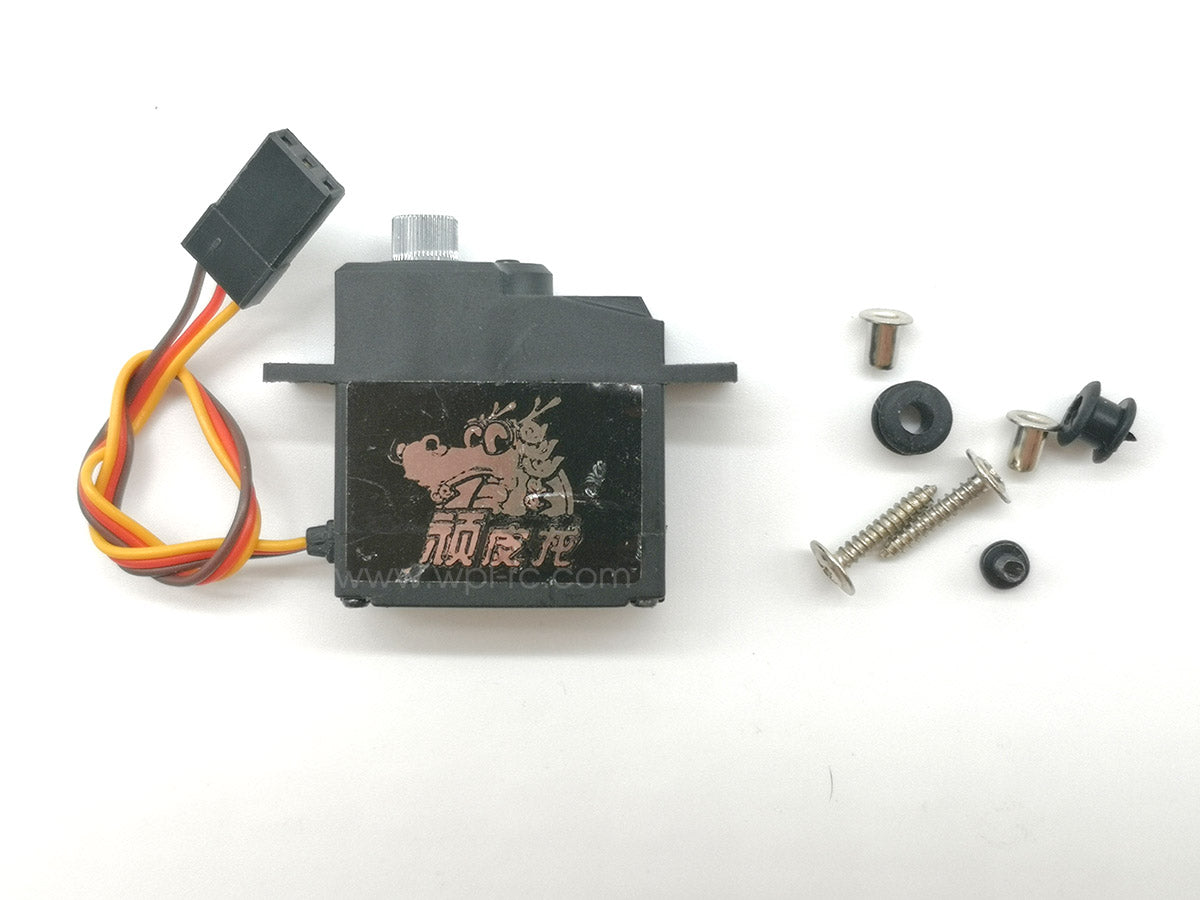

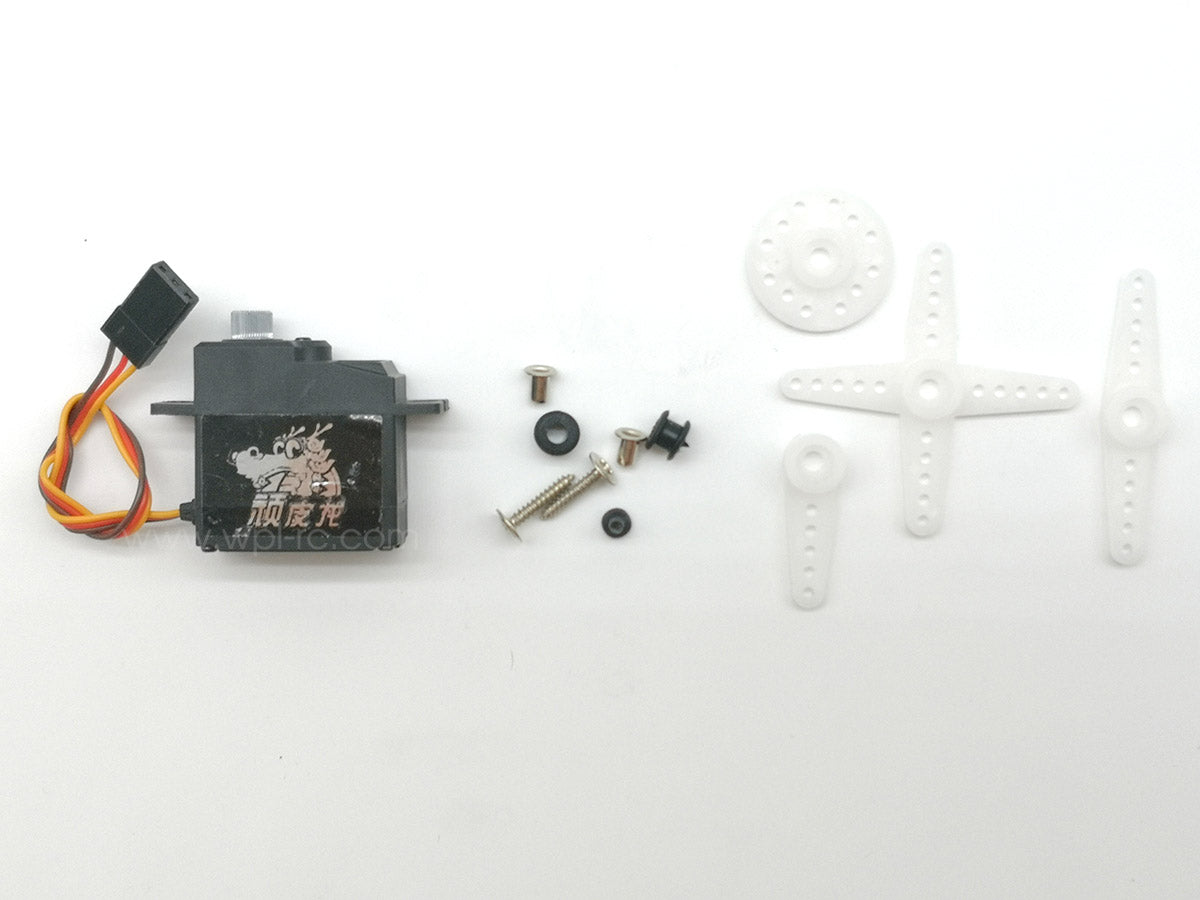

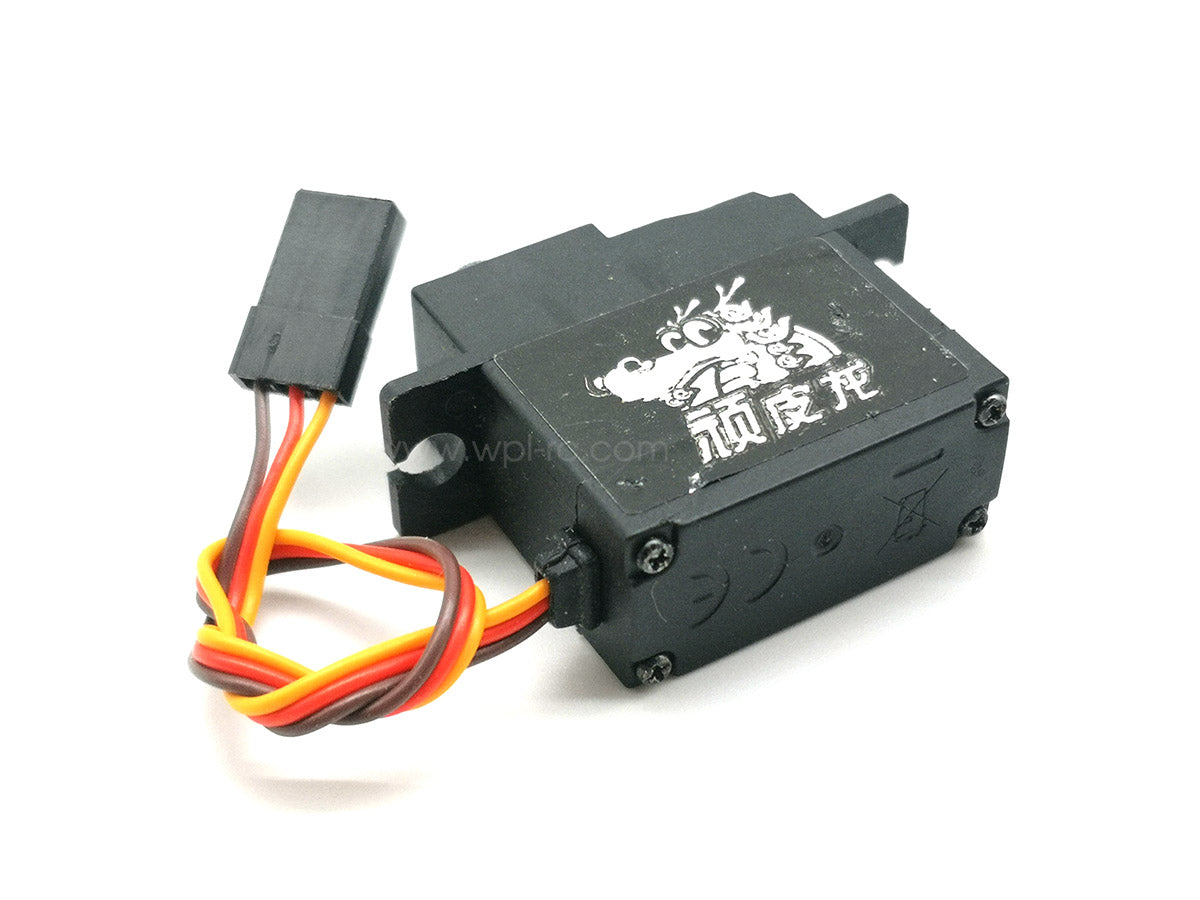

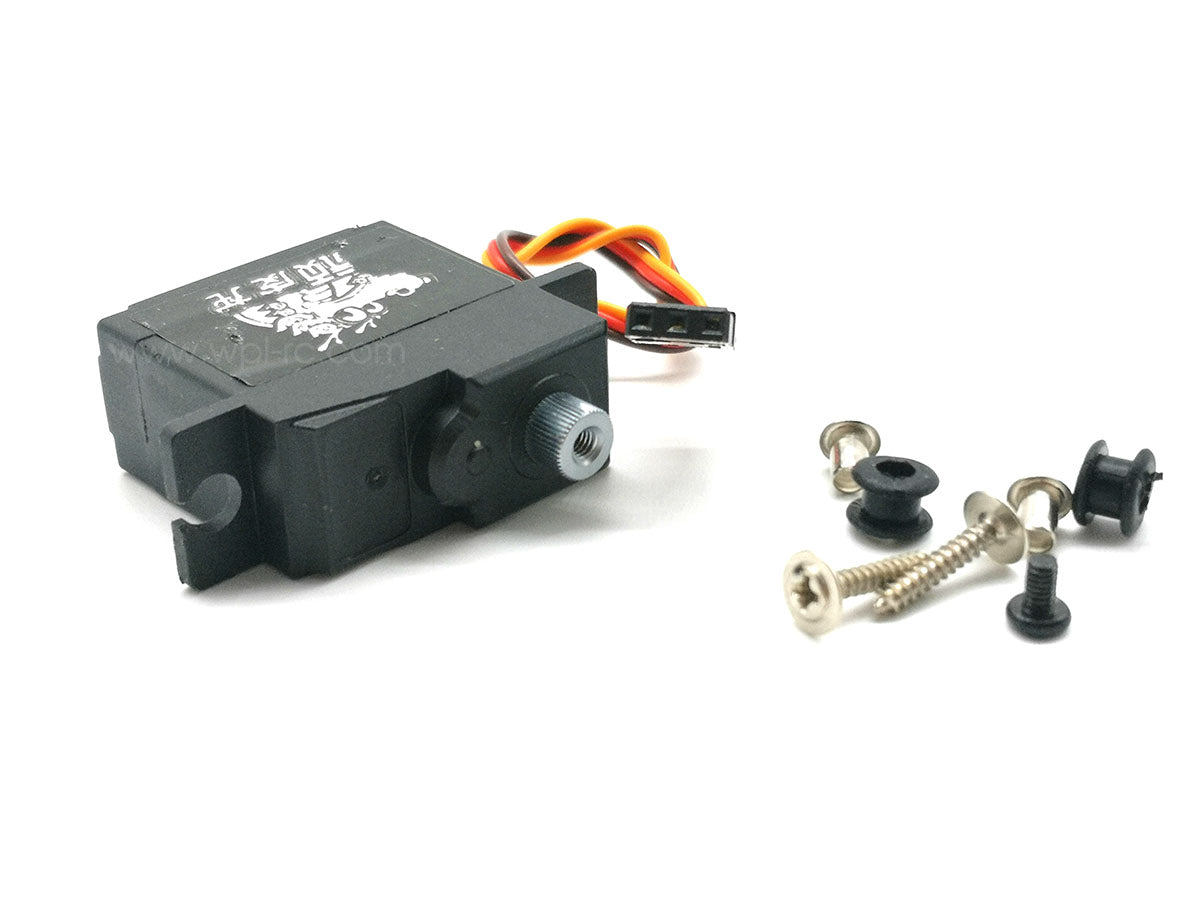

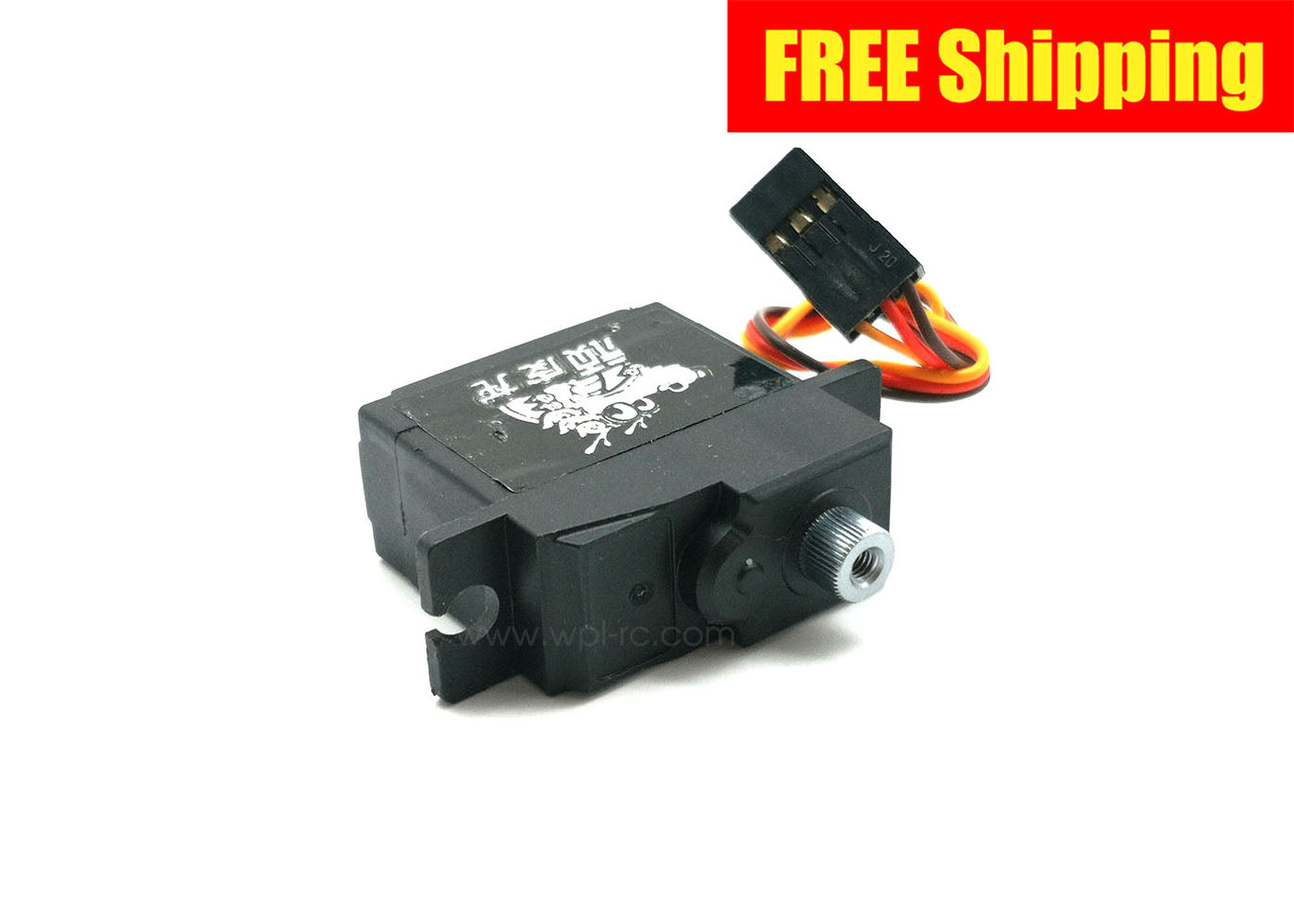

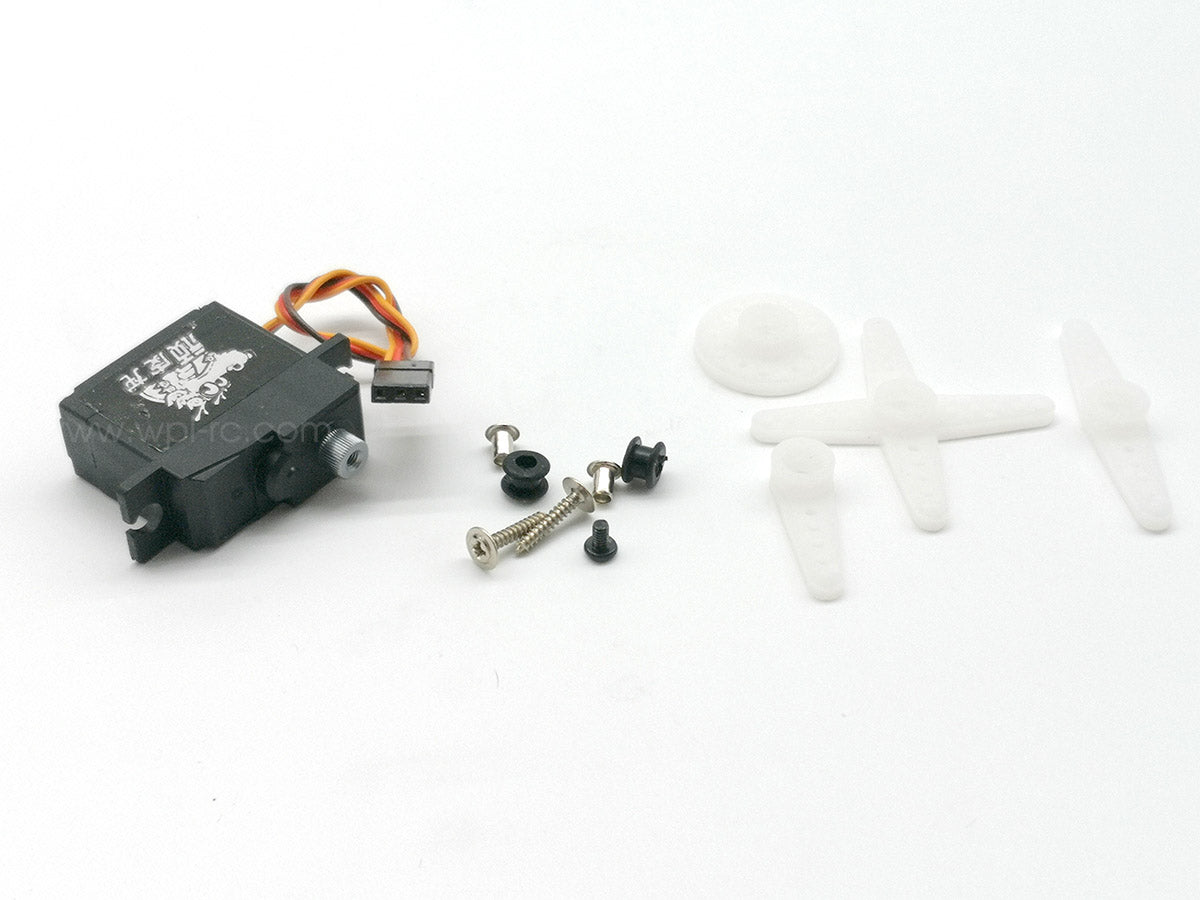

17g Digital Metal Gear Servo

Regular price $11.90 USD

17gram Servo

Signal : Digital

Gears - Metal

Compatible with all current models of B & C series and D12, except C34 and C44.

For Steering

Specification,
Dead band: 2μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm
Stall Torque (6V): 3.5 kg.cm
Dimensions:28x13x29.7cm
Weight: 17.5 g
Connector Wire Length: JR 180 mm
Output Shaft : 46T

Shipping weight : 0.03 kg

×
